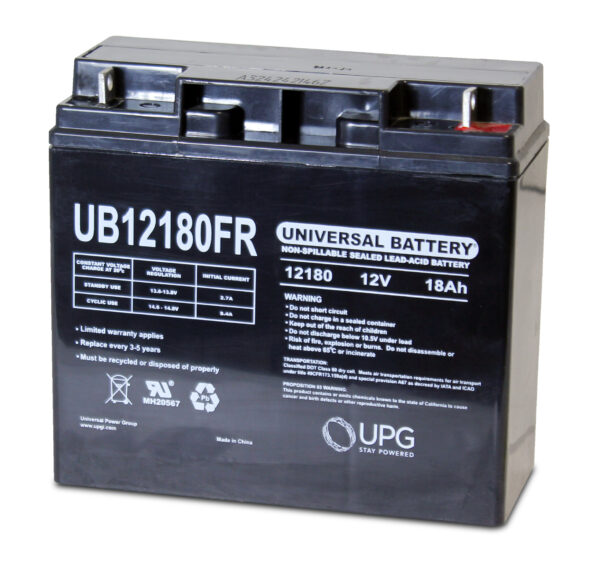

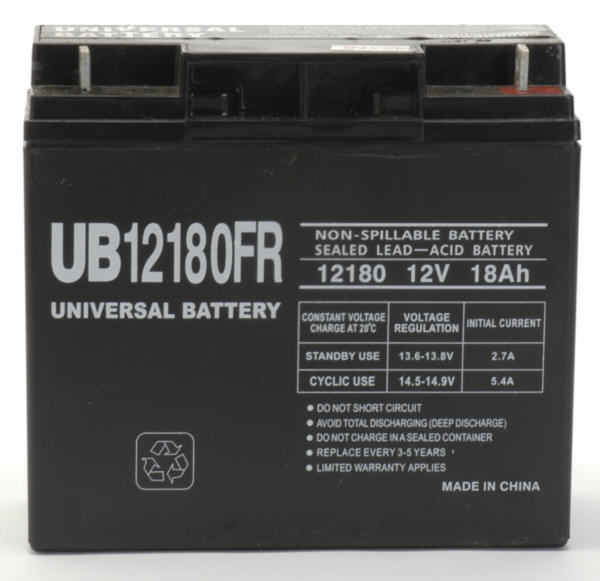

Universal Power UB12180FR Lead Acid Battery

Description

Universal Power UB12180FR UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals

Specifications
Battery Store SKU	UB-12180NBFR
Dimensions	” (L) x ” (W) x ” (H)
Dimensions (mm)	mm (L) x mm (W) x mm (H)
Weight	lbs ( kgs)

Additional information

Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12180
Terminal	Nut & Bolt (M5)
Terminal Layout
Case Material	Flame Retardant ABS Plastic
UPC Code
Manufacturers Model #	UB12180FR
Manufacturers SKU	45568
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	18 Ah @20 Hr
Capacity @20 Hr	18
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	7.13
Width (In)	3.06
Height - Case (In)	6.6
Height - Overall (In)	6.6
Length (mm)	181.1
Width (mm)	77.724
Height - Case (mm)	167.64
Height - Overall (mm)	167.64
Weight (lb)	11.4
Weight (kg)	5.2
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	4
Qty Per Pallet	240
