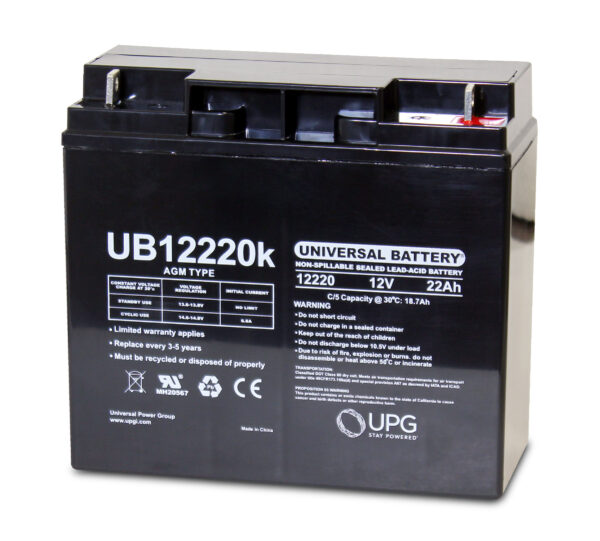

Universal Power UB12220 Lead Acid Battery

SKU: UB-12220NB Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-12220, Universal Power Tags: 40696, AGM-Lead Calcium, Lead Acid, UB Series, UB-12220, UB12220, Universal Power

$99.96

Universal Power UB12220 UB Series 12 Volt / 22 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB12220 UB Series 12 Volt / 22 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals

Specifications
Battery Store SKU	UB-12220NB
Dimensions	7.15″ (L) x 3.06″ (W) x 6.6″ (H)
Dimensions (mm)	181.6 mm (L) x 77.72 mm (W) x 167.6 mm (H)
Weight	13.01 lbs (5.9 kgs)

Additional information

Weight	5.9012972874898 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12220
Terminal	Nut & Bolt (M5)
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB12220
Manufacturers SKU	40696
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	22 Ah @20 Hr
Capacity @20 Hr	22
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	7.15
Width (In)	3.06
Height - Case (In)	6.6
Height - Overall (In)	6.6
Length (mm)	181.6
Width (mm)	77.72
Height - Case (mm)	167.6
Height - Overall (mm)	167.6
Weight (lb)	13.01
Weight (kg)	5.9
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	2
Qty Per Pallet	250

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...

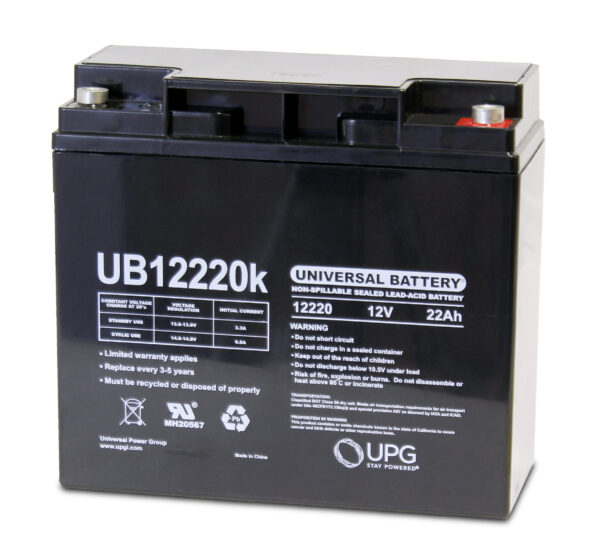

Universal Power UB12220 Lead Acid Battery

SKU: UB-12220R Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-12220, Universal Power Tags: 40582, AGM-Lead Calcium, Lead Acid, UB Series, UB-12220, UB12220, Universal Power

$99.96

Universal Power UB12220 UB Series 12 Volt / 22 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB12220 UB Series 12 Volt / 22 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals

Specifications
Battery Store SKU	UB-12220R
Dimensions	7.15″ (L) x 3.06″ (W) x 6.6″ (H)
Dimensions (mm)	181.6 mm (L) x 77.72 mm (W) x 167.6 mm (H)
Weight	13.01 lbs (5.9 kgs)

Additional information

Weight	5.9012972874898 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12220
Terminal	Recessed M5
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB12220
Manufacturers SKU	40582
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	22 Ah @20 Hr
Capacity @20 Hr	22
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	7.15
Width (In)	3.06
Height - Case (In)	6.6
Height - Overall (In)	6.6
Length (mm)	181.6
Width (mm)	77.72
Height - Case (mm)	167.6
Height - Overall (mm)	167.6
Weight (lb)	13.01
Weight (kg)	5.9
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	2
Qty Per Pallet	250

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...
