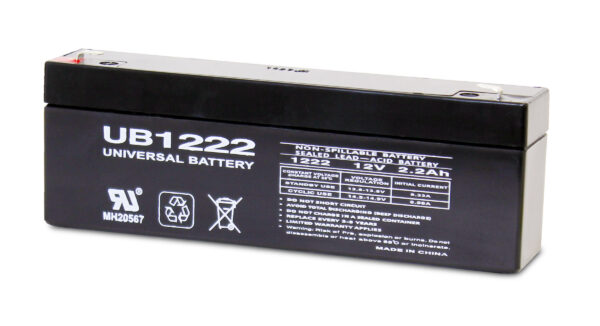

Universal Power UB1222 Lead Acid Battery
$20.96
Universal Power UB1222 UB Series 12 Volt / 2.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals
Out of stock
Loading...
Description
Universal Power UB1222 UB Series 12 Volt / 2.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-1222F1 |
| Dimensions | 7.01″ (L) x 1.4″ (W) x 2.6″ (H) |
| Dimensions (mm) | 178 mm (L) x 35.56 mm (W) x 66.04 mm (H) |
| Weight | 2.14 lbs (1 kgs) |
Additional information
| Weight | 0.97069763222353 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-1222 |
| Terminal | F1 (0.187") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB1222 |
| Manufacturers SKU | D5739 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 2.2 Ah @20 Hr |
| Capacity @20 Hr | 2.2 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.01 |
| Width (In) | 1.4 |
| Height - Case (In) | 2.6 |
| Height - Overall (In) | 2.6 |
| Length (mm) | 178 |
| Width (mm) | 35.56 |
| Height - Case (mm) | 66.04 |
| Height - Overall (mm) | 66.04 |
| Weight (lb) | 2.14 |
| Weight (kg) | 1 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 20 |
| Qty Per Pallet | 1400 |
