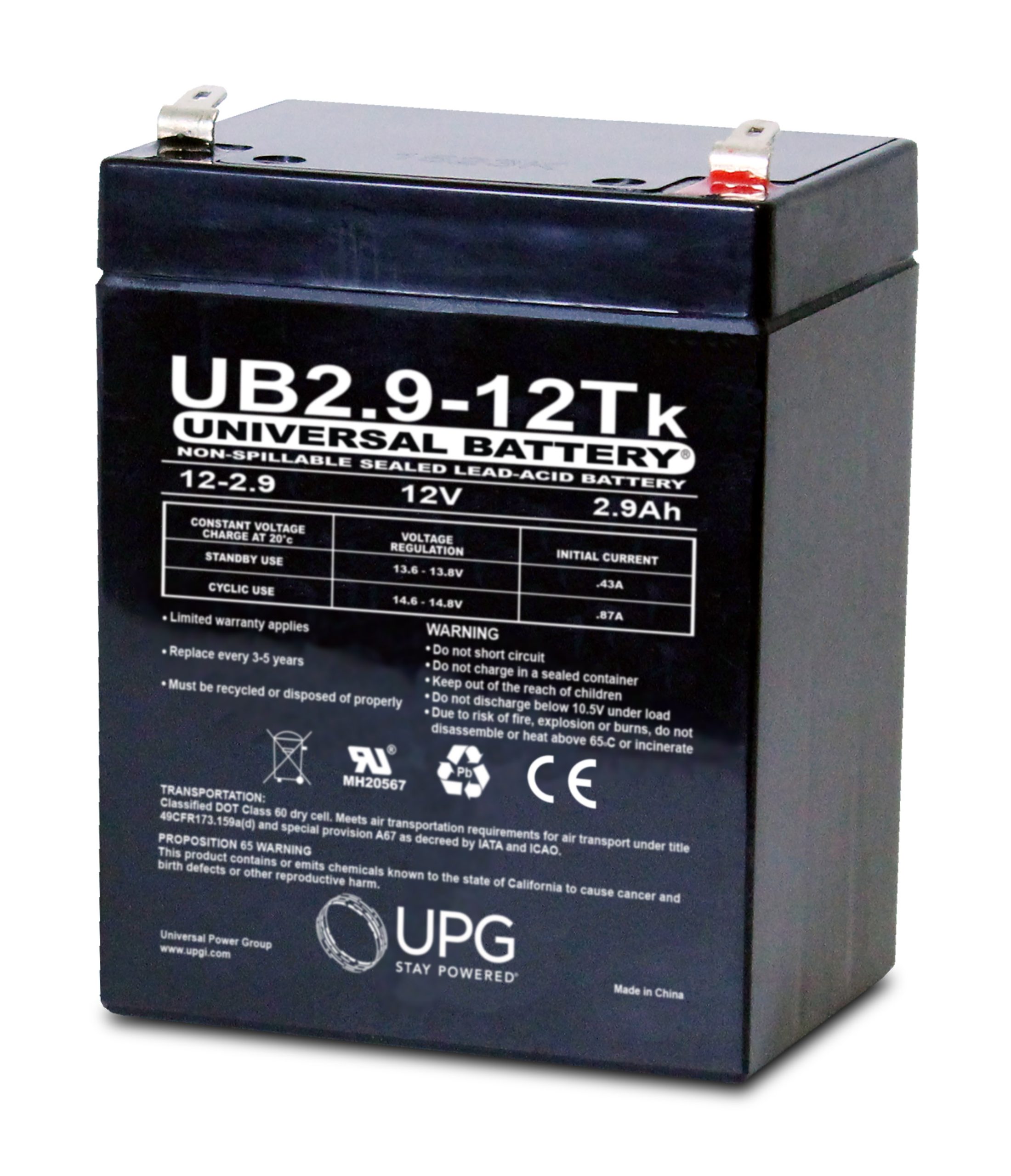

Universal Power UB1229T Lead Acid Battery

Universal Power UB1229T Lead Acid Battery

SKU: UB-1229TF1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-1229T, Universal Power Tags: AGM-Lead Calcium, D5700, Lead Acid, UB Series, UB-1229T, UB1229T, Universal Power

$30.62

Universal Power UB1229T UB Series 12 Volt / 2.9 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Out of stock

Add To Wishlist

Description

Universal Power UB1229T UB Series 12 Volt / 2.9 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	UB-1229TF1
Dimensions	3.11″ (L) x 2.2″ (W) x 4.1″ (H)
Dimensions (mm)	78.99 mm (L) x 55.88 mm (W) x 104.1 mm (H)
Weight	2.59 lbs (1.2 kgs)

Additional information

Weight	1.1748162932051 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-1229T
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB1229T
Manufacturers SKU	D5700
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	2.9 Ah @20 Hr
Capacity @20 Hr	2.9
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	3.11
Width (In)	2.2
Height - Case (In)	4.1
Height - Overall (In)	4.1
Length (mm)	78.99
Width (mm)	55.88
Height - Case (mm)	104.1
Height - Overall (mm)	104.1
Weight (lb)	2.59
Weight (kg)	1.2
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	10
Qty Per Pallet	1080
