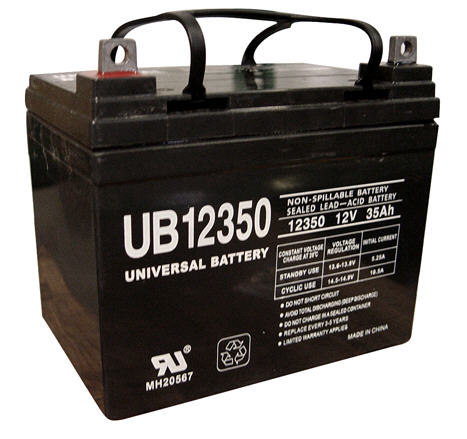

Universal Power UB12350 Lead Acid Battery

$136.74

Universal Power UB12350 UB Series 12 Volt / 35 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M6) Terminals

Out of stock

Loading...

Description

Universal Power UB12350 UB Series 12 Volt / 35 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M6) Terminals

Specifications
Battery Store SKU UB-12350NB
Dimensions 7.75″ (L) x 5.19″ (W) x 7.13″ (H)
Dimensions (mm) 196.8 mm (L) x 131.8 mm (W) x 181.1 mm (H)
Weight 22.5 lbs (10.2 kgs)

Additional information

Weight 10.205933049079 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-12350

Terminal

Nut & Bolt (M6)

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

UB12350

Manufacturers SKU

D5722

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

35 Ah @20 Hr

Capacity @20 Hr

35

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

7.75

Width (In)

5.19

Height - Case (In)

7.13

Height - Overall (In)

7.13

Length (mm)

196.8

Width (mm)

131.8

Height - Case (mm)

181.1

Height - Overall (mm)

181.1

Weight (lb)

22.5

Weight (kg)

10.2

BCI Group

Group U1

Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

128
