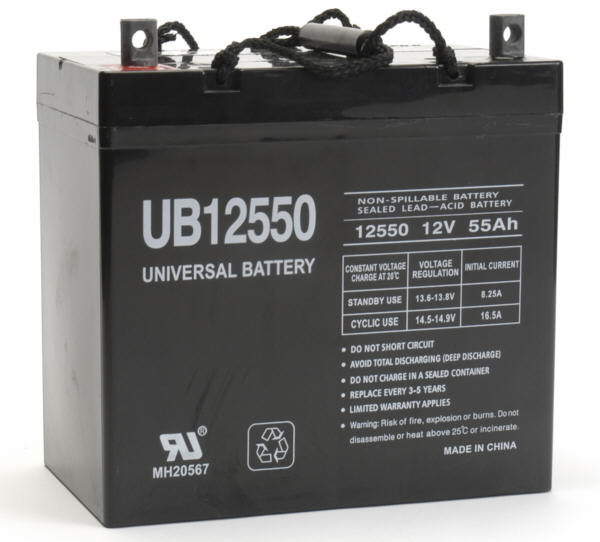

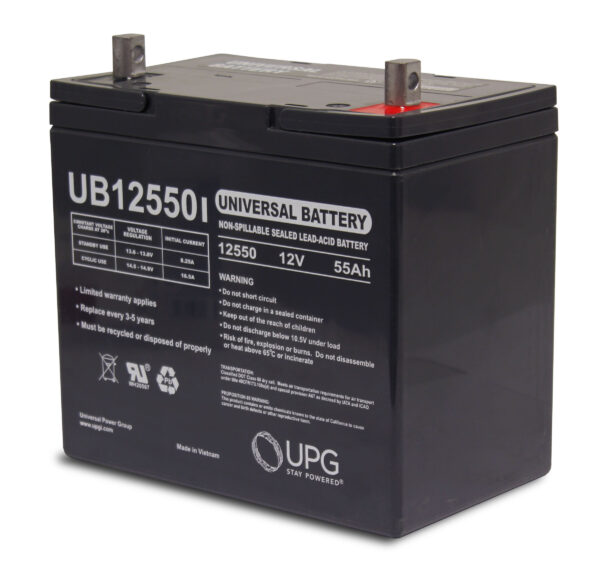

Universal Power UB12550 Lead Acid Battery

$243.46

Universal Power UB12550 UB Series 12 Volt / 55 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

Out of stock

Loading...

Description

Universal Power UB12550 UB Series 12 Volt / 55 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

Specifications
Battery Store SKU UB-12550NB
Dimensions 9.06″ (L) x 5.44″ (W) x 9.25″ (H)
Dimensions (mm) 230.12 mm (L) x 138.17 mm (W) x 234.95 mm (H)
Weight 38.6 lbs (17.5 kgs)

Product Notes

Left Positive Terminal

Additional information

Weight 17.508845141976 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-12550

Terminal

Nut & Bolt

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

UB12550

Manufacturers SKU

40740

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

55 Ah @20 Hr

Capacity @20 Hr

55

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

9.06

Width (In)

5.44

Height - Case (In)

9.25

Height - Overall (In)

9.25

Length (mm)

230.12

Width (mm)

138.17

Height - Case (mm)

234.95

Height - Overall (mm)

234.95

Weight (lb)

38.6

Weight (kg)

17.5

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

84
