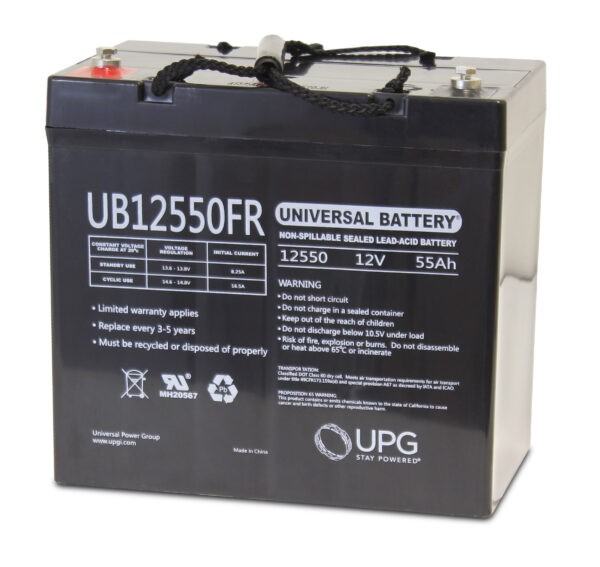

Universal Power UB12550FR Lead Acid Battery

Universal Power UB12550FR UB Series 12 Volt / 55 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals

Out of stock

Loading...

Description

Universal Power UB12550FR UB Series 12 Volt / 55 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals

Specifications
Battery Store SKU UB-12550UTFR
Dimensions 9.02″ (L) x 5.44″ (W) x 9.17″ (H)
Dimensions (mm) 229.11 mm (L) x 138.17 mm (W) x 232.91 mm (H)
Weight 36.38 lbs (16.5 kgs)

Additional information

Weight 16.5018597478 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-12550

Terminal

Nut & Bolt (Universal)

Terminal Layout
Case Material

Flame Retardant ABS Plastic

UPC Code
Manufacturers Model #

UB12550FR

Manufacturers SKU

D5881

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

55 Ah @20 Hr

Capacity @20 Hr

55

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

9.02

Width (In)

5.44

Height - Case (In)

9.17

Height - Overall (In)

9.17

Length (mm)

229.11

Width (mm)

138.17

Height - Case (mm)

232.91

Height - Overall (mm)

232.91

Weight (lb)

36.38

Weight (kg)

16.5

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

84
