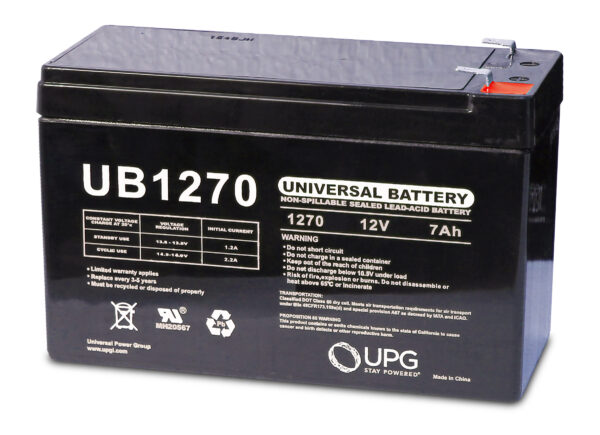

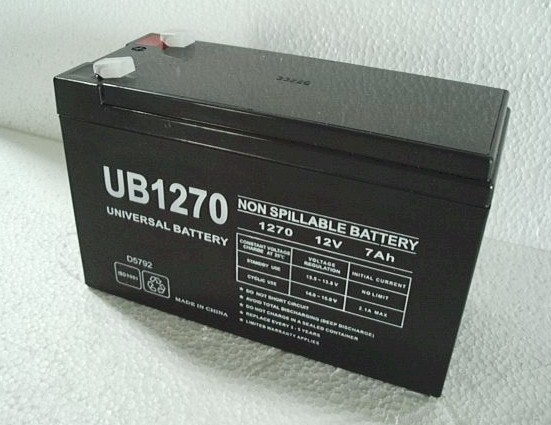

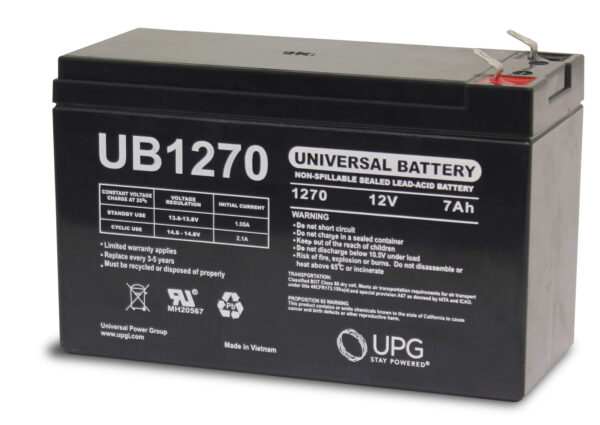

Universal Power UB1270 Lead Acid Battery

Universal Power UB1270 Lead Acid Battery - Image 2

Universal Power UB1270 Lead Acid Battery - Image 3

Universal Power UB1270 Lead Acid Battery - Image 4

Universal Power UB1270 Lead Acid Battery

SKU: UB-1270F1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-1270, Universal Power Tags: 40800, AGM-Lead Calcium, Lead Acid, UB Series, UB-1270, UB1270, Universal Power

$26.38

Universal Power UB1270 UB Series 12 Volt / 7 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Out of stock

Add To Wishlist

Description

Universal Power UB1270 UB Series 12 Volt / 7 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	UB-1270F1
Dimensions	5.94″ (L) x 2.58″ (W) x 4.06″ (H)
Dimensions (mm)	150.8 mm (L) x 65.53 mm (W) x 103.1 mm (H)
Weight	4.7 lbs (2.1 kgs)

Additional information

Weight	2.1319060146965 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-1270
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB1270
Manufacturers SKU	40800
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	7 Ah @20 Hr
Capacity @20 Hr	7
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	2.58
Height - Case (In)	4.06
Height - Overall (In)	4.06
Length (mm)	150.8
Width (mm)	65.53
Height - Case (mm)	103.1
Height - Overall (mm)	103.1
Weight (lb)	4.7
Weight (kg)	2.1
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	4
Qty Per Pallet	544
