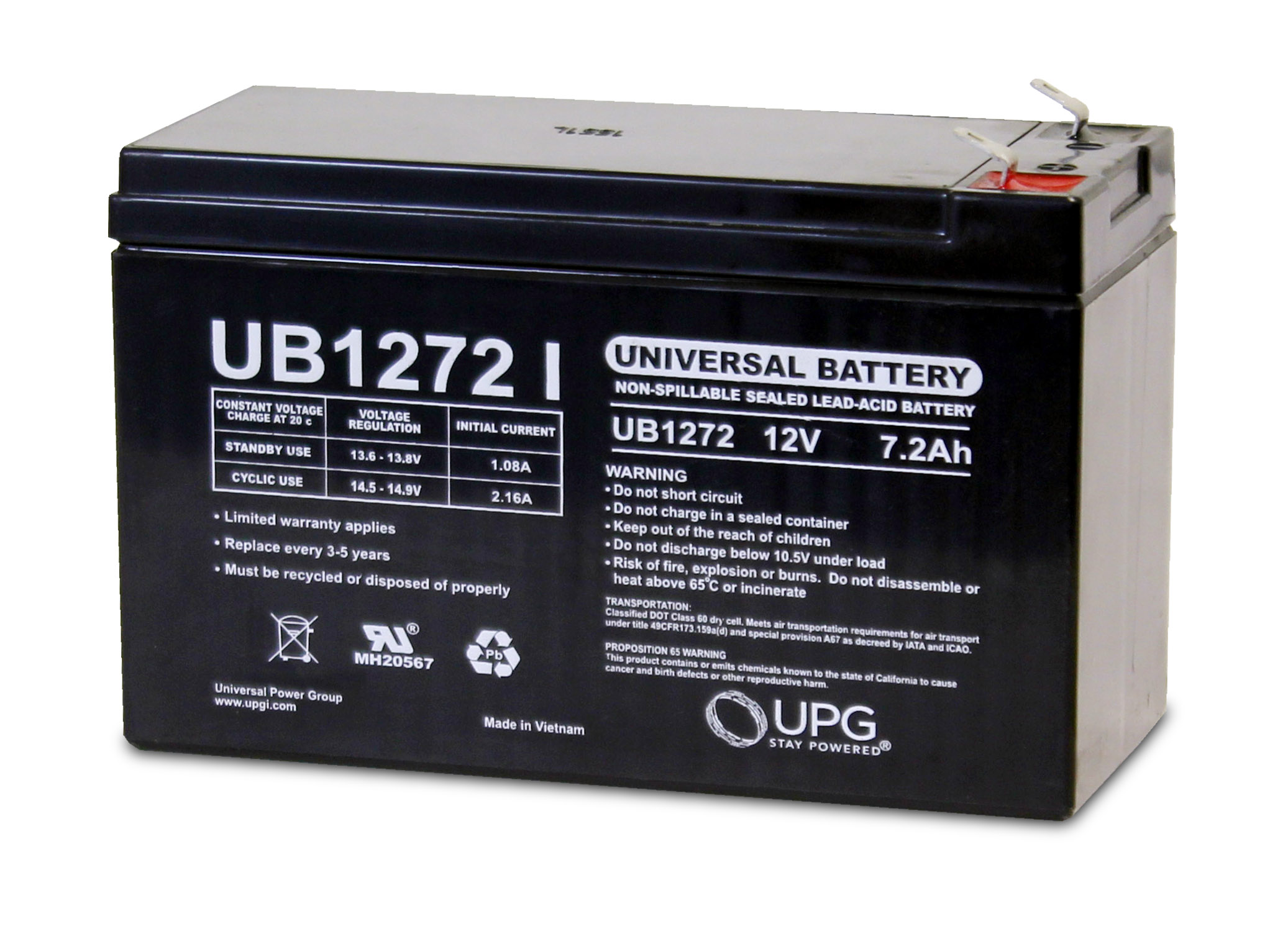

Universal Power UB1272 Lead Acid Battery
$31.60
Universal Power UB1272 UB Series 12 Volt / 7.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals
Out of stock
Loading...
Description
Universal Power UB1272 UB Series 12 Volt / 7.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-1272F1 |
| Dimensions | 5.94″ (L) x 2.58″ (W) x 4.06″ (H) |
| Dimensions (mm) | 150.8 mm (L) x 65.53 mm (W) x 103.1 mm (H) |
| Weight | 4.85 lbs (2.2 kgs) |
Additional information
| Weight | 2.1999455683571 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-1272 |
| Terminal | F1 (0.187") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB1272 |
| Manufacturers SKU | 40760 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 7.2 Ah @20 Hr |
| Capacity @20 Hr | 7.2 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.94 |
| Width (In) | 2.58 |
| Height - Case (In) | 4.06 |
| Height - Overall (In) | 4.06 |
| Length (mm) | 150.8 |
| Width (mm) | 65.53 |
| Height - Case (mm) | 103.1 |
| Height - Overall (mm) | 103.1 |
| Weight (lb) | 4.85 |
| Weight (kg) | 2.2 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 8 |
| Qty Per Pallet | 544 |
