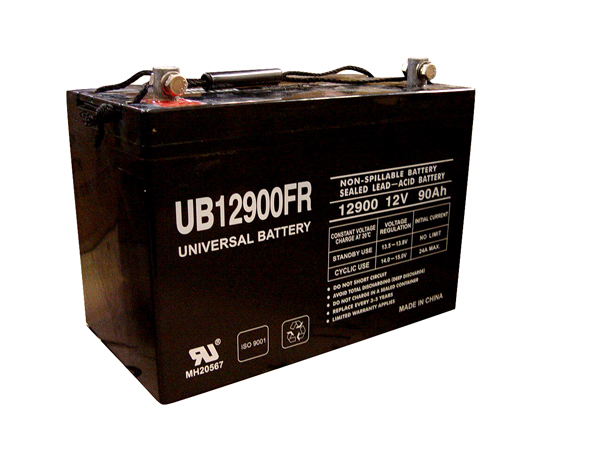

Universal Power UB12900FR Lead Acid Battery
$368.00
Universal Power UB12900FR UB Series 12 Volt / 90 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals
Out of stock
Description
Universal Power UB12900FR UB Series 12 Volt / 90 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12900UTFR |
| Dimensions | 12.05″ (L) x 6.61″ (W) x 9.13″ (H) |
| Dimensions (mm) | 306.07 mm (L) x 167.89 mm (W) x 231.9 mm (H) |
| Weight | 59.5 lbs (27 kgs) |
Additional information
| Weight | 26.989022952009 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-12900 |
| Terminal | Nut & Bolt (Universal) |
| Terminal Layout | |
| Case Material | Flame Retardant ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12900FR |
| Manufacturers SKU | D5883 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 90 Ah @20 Hr |
| Capacity @20 Hr | 90 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 12.05 |
| Width (In) | 6.61 |
| Height - Case (In) | 9.13 |
| Height - Overall (In) | 9.13 |
| Length (mm) | 306.07 |
| Width (mm) | 167.89 |
| Height - Case (mm) | 231.9 |
| Height - Overall (mm) | 231.9 |
| Weight (lb) | 59.5 |
| Weight (kg) | 27 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 1 |
| Qty Per Pallet | 52 |
Similar Products from this Brand
Form, Fit and Function Equivalents
Please choose search option from the menu to start your search...
Universal Power UB12900FR Lead Acid Battery
$368.00
Universal Power UB12900FR UB Series 12 Volt / 90 Ah @20 Hr Lead Acid Battery with Recessed Terminals
Out of stock
Description
Universal Power UB12900FR UB Series 12 Volt / 90 Ah @20 Hr Lead Acid Battery with Recessed Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12900RFR |
| Dimensions | 12.05″ (L) x 6.61″ (W) x 8.35″ (H) |
| Dimensions (mm) | 306.07 mm (L) x 167.894 mm (W) x 212.09 mm (H) |
| Weight | 59.52 lbs (27.1 kgs) |
Additional information
| Weight | 26.998094892498 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-12900 |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | Flame Retardant ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12900FR |
| Manufacturers SKU | 45504 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 90 Ah @20 Hr |
| Capacity @20 Hr | 90 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 12.05 |
| Width (In) | 6.61 |
| Height - Case (In) | 8.35 |
| Height - Overall (In) | 8.35 |
| Length (mm) | 306.07 |
| Width (mm) | 167.894 |
| Height - Case (mm) | 212.09 |
| Height - Overall (mm) | 212.09 |
| Weight (lb) | 59.52 |
| Weight (kg) | 27.1 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 1 |
| Qty Per Pallet | 52 |
