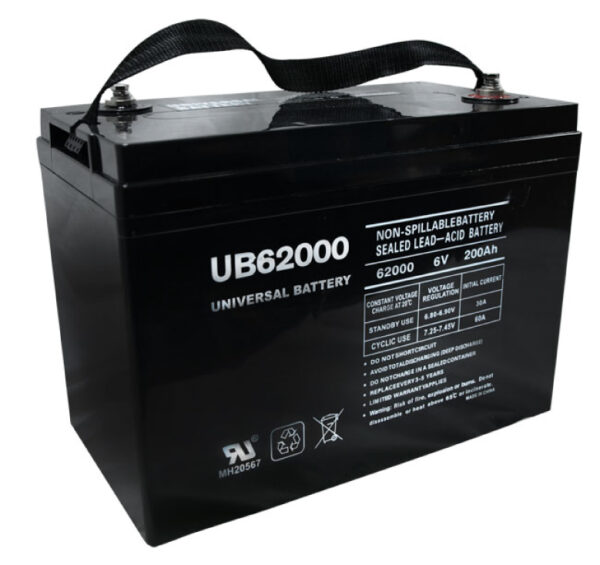

Universal Power UB62000 Lead Acid Battery

$427.36

Universal Power UB62000 UB Series 6 Volt / 200 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals

Out of stock

Loading...

Description

Universal Power UB62000 UB Series 6 Volt / 200 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals

Specifications
Battery Store SKU UB-62000R
Dimensions 12.05″ (L) x 6.61″ (W) x 8.95″ (H)
Dimensions (mm) 306 mm (L) x 167.8 mm (W) x 227.3 mm (H)
Weight 60.6 lbs (27.5 kgs)

Additional information

Weight 27.487979678853 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-62000

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

UB62000

Manufacturers SKU

45969

Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

200 Ah @20 Hr

Capacity @20 Hr

200

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

12.05

Width (In)

6.61

Height - Case (In)

8.95

Height - Overall (In)

8.95

Length (mm)

306

Width (mm)

167.8

Height - Case (mm)

227.3

Height - Overall (mm)

227.3

Weight (lb)

60.6

Weight (kg)

27.5

BCI Group

Group 27

Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

42
