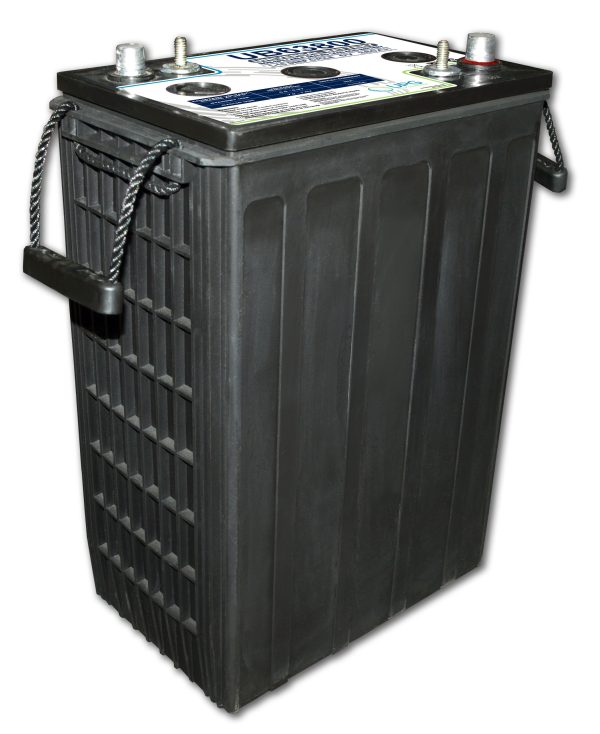

Universal Power UB63800 Lead Acid Battery
$1,145.92
Universal Power UB63800 UB Series 6 Volt / 380 Ah @20 Hr Lead Acid Battery with SAE & 3/8″ Threaded Terminals
Out of stock
Loading...
Description
Universal Power UB63800 UB Series 6 Volt / 380 Ah @20 Hr Lead Acid Battery with SAE & 3/8″ Threaded Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-63800SA |
| Dimensions | 11.6″ (L) x 7.1″ (W) x 16.8″ (H) |
| Dimensions (mm) | 294.6 mm (L) x 180.3 mm (W) x 426.7 mm (H) |
| Weight | 123 lbs (55.9 kgs) |
Additional information
| Weight | 55.792434001633 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-63800 |
| Terminal | SAE & 3/8" Threaded |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB63800 |
| Manufacturers SKU | 40870 |
| Deprecated Model # | |
| Applications | |
| Voltage | 6 |
| Capacity (Nominal) | 380 Ah @20 Hr |
| Capacity @20 Hr | 380 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 11.6 |
| Width (In) | 7.1 |
| Height - Case (In) | 16.8 |
| Height - Overall (In) | 16.8 |
| Length (mm) | 294.6 |
| Width (mm) | 180.3 |
| Height - Case (mm) | 426.7 |
| Height - Overall (mm) | 426.7 |
| Weight (lb) | 123 |
| Weight (kg) | 55.9 |
| BCI Group | Group L16 |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 1 |
| Qty Per Pallet | 24 |
