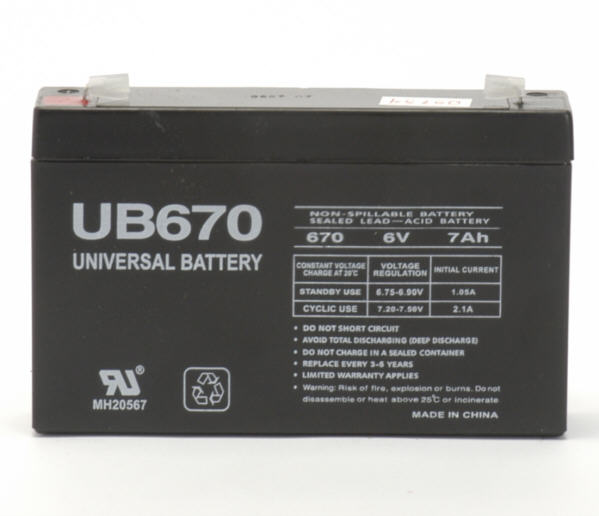

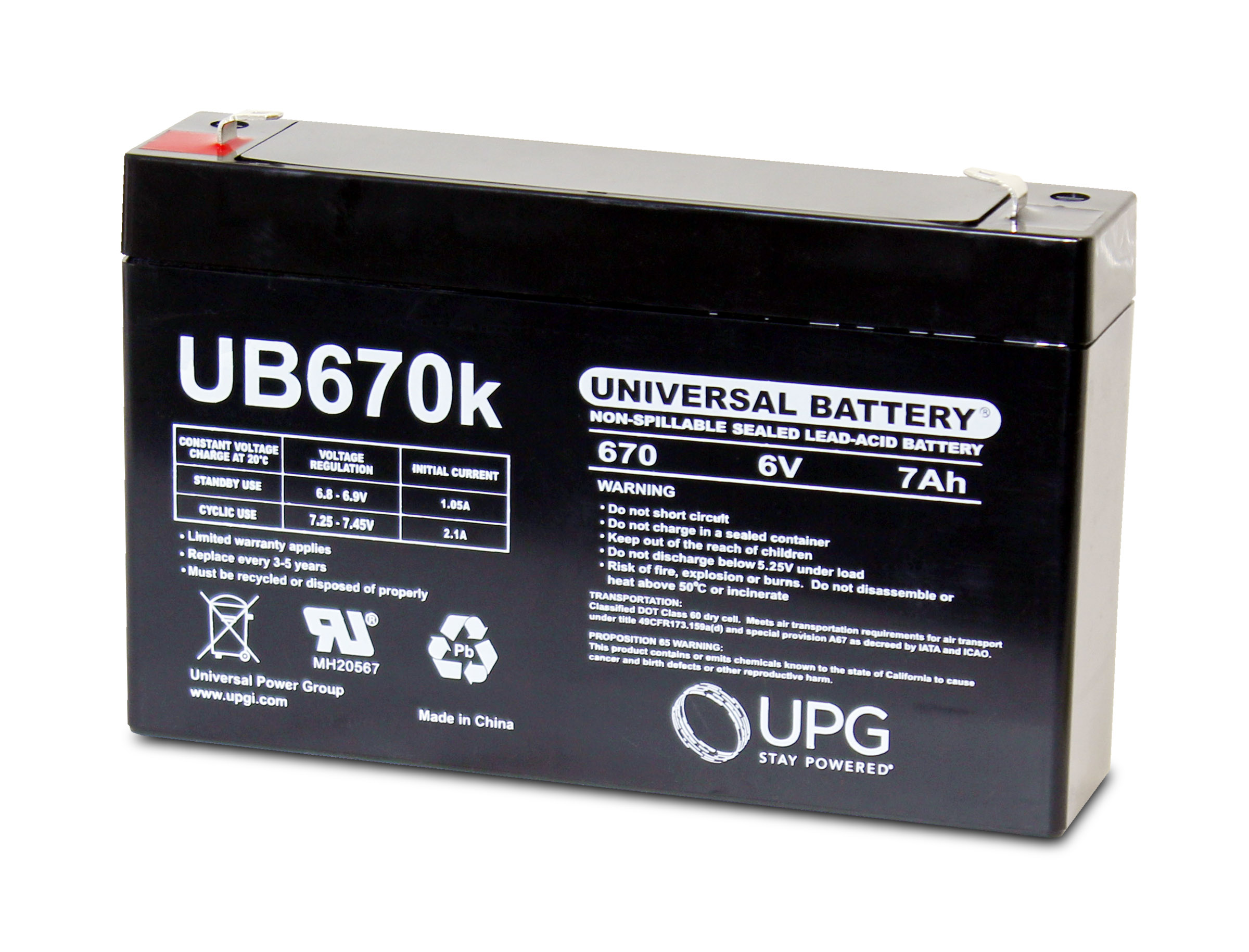

Universal Power UB670 Lead Acid Battery

Universal Power UB670 Lead Acid Battery - Image 2

Universal Power UB670 Lead Acid Battery

SKU: UB-670F1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-670, Universal Power Tags: AGM-Lead Calcium, D5734, Lead Acid, UB Series, UB-670, UB670, Universal Power

$19.78

Universal Power UB670 UB Series 6 Volt / 7 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Out of stock

Add To Wishlist

Description

Universal Power UB670 UB Series 6 Volt / 7 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	UB-670F1
Dimensions	5.94″ (L) x 1.34″ (W) x 3.94″ (H)
Dimensions (mm)	150.8 mm (L) x 34.03 mm (W) x 100 mm (H)
Weight	2.43 lbs (1.1 kgs)

Additional information

Weight	1.1022407693006 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-670
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB670
Manufacturers SKU	D5734
Deprecated Model #
Applications
Voltage	6
Capacity (Nominal)	7 Ah @20 Hr
Capacity @20 Hr	7
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	1.34
Height - Case (In)	3.94
Height - Overall (In)	3.94
Length (mm)	150.8
Width (mm)	34.03
Height - Case (mm)	100
Height - Overall (mm)	100
Weight (lb)	2.43
Weight (kg)	1.1
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	10
Qty Per Pallet	1000
