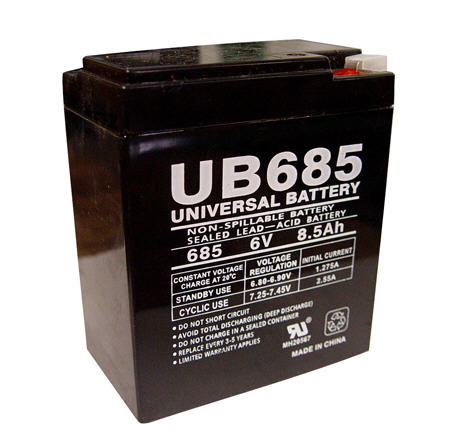

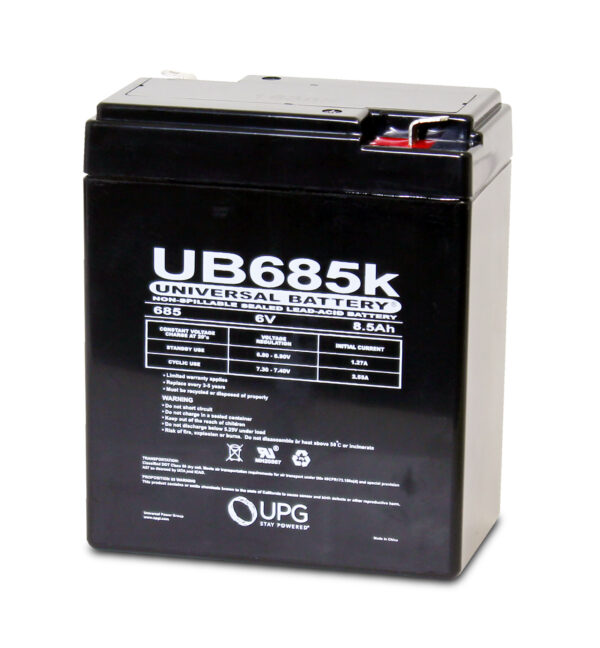

Universal Power UB685 Lead Acid Battery

Universal Power UB685 Lead Acid Battery - Image 2

Universal Power UB685 Lead Acid Battery

SKU: UB-685F1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-685, Universal Power Tags: AGM-Lead Calcium, D5735, Lead Acid, UB Series, UB-685, UB685, Universal Power

$25.52

Universal Power UB685 UB Series 6 Volt / 8.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Out of stock

Add To Wishlist

Description

Universal Power UB685 UB Series 6 Volt / 8.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	UB-685F1
Dimensions	3.9″ (L) x 2.24″ (W) x 4.53″ (H)
Dimensions (mm)	99.06 mm (L) x 56.89 mm (W) x 115 mm (H)
Weight	3.3 lbs (1.5 kgs)

Additional information

Weight	1.4968701805316 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-685
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB685
Manufacturers SKU	D5735
Deprecated Model #
Applications
Voltage	6
Capacity (Nominal)	8.5 Ah @20 Hr
Capacity @20 Hr	8.5
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	3.9
Width (In)	2.24
Height - Case (In)	4.53
Height - Overall (In)	4.53
Length (mm)	99.06
Width (mm)	56.89
Height - Case (mm)	115
Height - Overall (mm)	115
Weight (lb)	3.3
Weight (kg)	1.5
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	10
Qty Per Pallet	800
